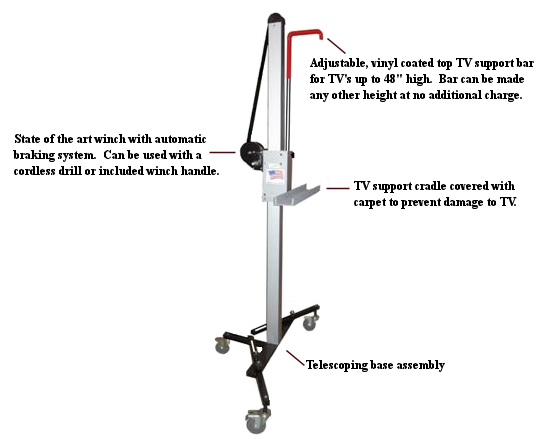

E-Z Lift Plasma TV Lift

DETAILED INFORMATION

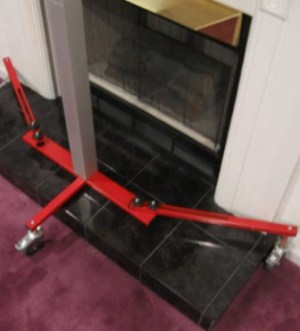

The E-Z TV Lift was designed for professional AV installers. The fireplace model, with it's ball bearing sliding TV support table and adjustable length base will lift and position a flat panel TV over a fireplace, hearth and/or mantle. This model works equally as well when these items are not present. The standard model is for installations without a fireplace, hearth and/or mantle. Each model has four modular sub assemblies and no tools are needed for assembly. It takes less than one minute for on site assembly. With it's 1/8" thick felt covered table top and 1/8" thick felt covered vertical support bars there will be no damage to the TV while it is being installed. The total weight of all four sub assemblies is 64 lbs. for the fireplace model and 54 lbs. for the standard model.

The E-Z TV Lift is two tools in one. First as a TV installation tool and second as a dolly for moving a TV from room to room.

As with all of our tools the E-Z TV Lift is manufactured and assembled in the U.S.A. and can be shipped worldwide by UPS.

Have you ever had to lift a heavy $6,000.00 plasma TV overhead by yourself and at the same time try to attach it to a wall or ceiling mount bracket? If you have you know it's a real challenge, not to mention the possibility of dropping it. It can be done, but how safe is it? Not very! The safest and easiest way would be to use the E-Z TV Lift. This tool was designed and engineered for one person installations but may also be used when two people are on the job.

If you work alone the E-Z TV Lift is the tool for you. You will never again have an injured back lifting a heavy TV overhead, never need a helper and never need workers compensation insurance. You will, on the other hand, save time and money and your customer will have a safe professional installation. Isn't that what you and your customers really want?

E-Z Lift Plasma TV Lift
E-Z Lift Plasma TV Lift
E-Z Lift Plasma TV Lift
E-Z TV Lift
Fireplace Model

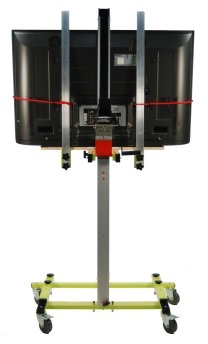

E-Z TV Lift
Standard Model
E-Z TV Lift
Standard Model


  • Strong, lightweight anodized aluminum parts.

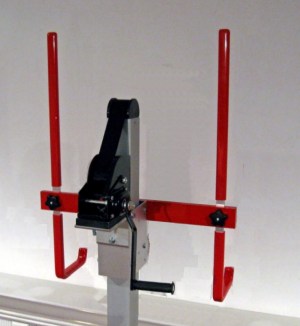

  • Solid maple, 1/8" felt covered TV support table and
    vertical TV support arms.Table 31" wide x 9" deep.
  • 300 lb lift capacity-200 lbs with table fully extended.
  • Maximum lifting height 70"
  • 18" to 100" TV length capacity.
  • Ships worldwide by UPS.
  • Can be used with plasma or LCD TV's.
  • 4" Polyurethane wheels - 2 with wheel lock brake.
  • Automatic locking winch with extra long handle
    to raise and lower TV effortlessly and quickly.
  • 2 piece mast assembly for easy transport and set up.
  • Four modular assemblies. 1 minute assembly time.
  • No tools needed for assembly.
  • Weight: Fireplace tool 64 lbs., Standard tool 54 lbs.
  • Manufactured and assembled in the U.S.A.

SUB ASSEMBLY DIMENSIONS

E-Z TV Lift - Fireplace Model
Table Top Assembly - 31" long x 27" wide x 16" high

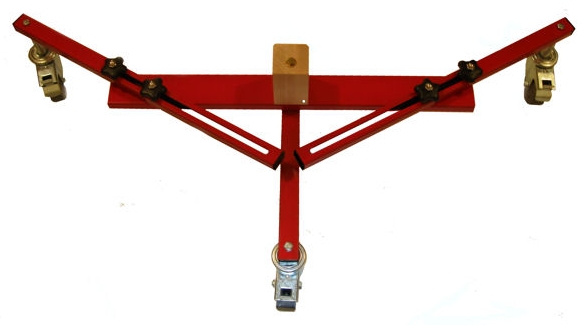

Base Assembly - 41" long x 26" wide x 11" high
Post Assembly with Pulley - 43" long x 3" x 3" square tube
Post Assembly with Connector Block - 47" long x 3" x 3" square tube


E-Z TV Lift - Standard Model
Table Top Assembly - 31" long x 23" wide x 16" high

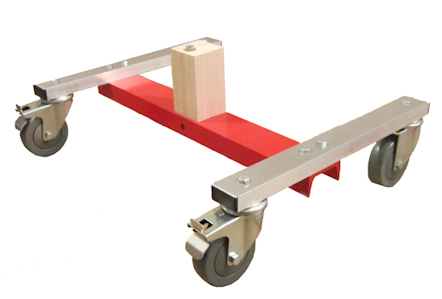

Base Assembly - 32" long x 19" wide x 16" high
Post Assembly with Pulley - 43" long x 3" x 3" square tube
Post Assembly with Connector Block - 47" long x 3" x 3" square tube


If space is an issue when transporting either tool the table top assembly and base assembly can be stacked together as a single unit. After doing this the dimensions of the Fireplace Model will be 41" long x 26" wide x 21" high and the dimensions of the Standard Model will be 31" long x 23" wide x 21" high.
