E-Z Lift Cabinet Jack - Model EZ-1

For 12" Deep Cabinets Only

DETAILED INFORMATION

The E-Z Lift Cabinet Jack is three tools in one; for installing upper cabinets before or after base cabinets and counter tops are in place and as a dolly for moving cabinets from room to room. This tool can install 12" deep cabinets only of any height. It is completely modular taking less than one minute to set up.

The cabinet support table has levelers in each corner for precisely leveling and plumbing uppers to compensate for an uneven floor. The base has four, 4" polyurethane swivel casters, two of them locking. There are 2 padded counter top protection channels that protect the counter top from being damaged when installing uppers after bases and counter tops are in place.

It is faster, easier and safer to install a bank of cabinets assembled together on the floor rather than one cabinet at a time. Also crown moulding can be attached to the cabinets before raising them. The profit on installations will be substantialy greater, not to mention ending the difficulty of finding competent help. Also, no workers compensation insurance is needed. The tool will pay for itself quickly and save wear and tear on the body.

The E-Z Lift Cabinet Jack is a professional grade, heavy duty, reasonably priced tool that will give years of trouble free service. 		E-Z Lift Cabinet Jack

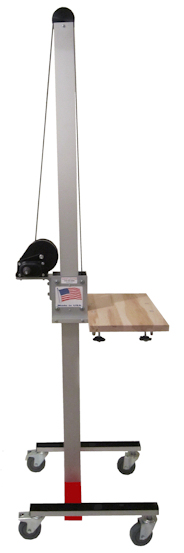

E-Z Lift Cabinet Jack
Model EZ-1
Configured for installing uppers
before bases and counter tops are
in place. Comes with counter top
protection channels.
(Not shown in picture.)
E-Z Lift Cabinet Jack

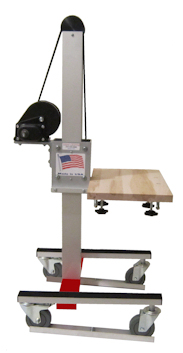

E-Z Lift Cabinet Jack
Model EZ-1
 Configured for installing uppers
after bases and counter tops are
in place. Shown with counter top
protection channels
under casters.
  • One person needed - not two
  • Cut installation time in half
  • Lift range 7" to 70"
  • Total height 79 3/4"
  • 300 lb. capacity
  • Anodized aluminum parts
  • Solid maple support table
  • Completely modular assy's.
  • Designed for safe, dependable use
  • Complete - no extra parts to buy
  • Hand operated - no electric needed
  • One minute on site setup
  • Reasonably priced
  • Easy to use
  • Ships anywhere by UPS
  • Manufactured in the U.S.A.

A pair of temporary supports are needed when a run of upper cabinets are installed after bases and counter tops are in place. Each assembly uses a 23" long 2 x 6 for the base and a 23" long 2 x 8 for the top. They will look like an upside down "T" when assembled. The pictures on the right show the two assemblies. Temporary Supports


Install a row of Upper Cabinets prior to Lower Cabinets...
PLACE ASSEMBLED CABINETS IN FRONT OF WALL. TILT AND ROLL TOOL UNDER ASSEMBLY, MAKING SURE TOOL IS CENTERED AND BALANCED UNDER ASSEMBLY SO CABINETS ARE NOT LEANING TO ONE SIDE.
Lift one end and roll tool
under row of cabinets... 		MOVE THE ASSEMBLED CABINETS IN FRONT OF THE WALL WITH THE TOOL UNDERNEATH, WHERE THEY ARE TO BE INSTALLED. THE ASSEMBLY SHOULD BE APPROXIMATELY ONE INCH AWAY FROM THE WALL PRIOR TO RAISING THEM INTO POSITION
...balance and
position cabinets... 		CAREFULLY RAISE THE ASSEMBLED CABINETS TO THE PROPER HEIGHT. MAKE SURE THE CABINETS ARE BALANCED ON THE TOOL AND FASTEN THEM TO THE WALL.
...raise cabinets to
proper height and mount!
...or even after Lower Cabinets are installed!
USE THE SAME METHOD FOR PLACING THE CABINETS ON THE TOOL BUT POSITION THE CABINETS IN FRONT OF THE INSTALLED BASE CABINETS INSTEAD OF IN FRONT OF THE WALL
Load uppers, position in front
of base cabinets and raise... 		PLACE TEMPORARY CABINET SUPPORTS ON TOP OF COUNTERTOP. RAISE CABINETS TO SAME HEIGHT AS SUPPORTS. CAREFULLY LIFT AND SLIDE ONE END OF CABINET ASSEMBLY ONTO ONE SUPPORT. DO THE SAME ON THE OTHER SIDE AND REMOVE TOOL.
...slide cabinets onto temporary
supports, one end at a time... 		LIFT THE COUNTERTOP CONFIGURED TOOL ONTO THE COUNTERTOP. RAISE ASSEMBLY TO PROPER HEIGHT (MAKE SURE CABINETS ARE BALANCED ON TOOL) FASTEN CABINETS TO WALL.
...raise cabinets to
proper height and mount!
Hover over the above pictures for more details...

Prices and Ordering


TOOL SPECIFICATIONS

Maximum load rating 300 lbs.
Lift height from 7" to 70"
21" wide x 12" deep solid maple cabinet support table
Forward, neutral and reverse locking winch - 2000 lb. capacity
Heavy duty nylon winch strap - 2500 lb. tensile strength
Total weight of all tool components 67 lbs.
Shipping weight 73 lbs. (two boxes)
